Grid template areas

You have already encountered the grid-area property. This is the property that can take as a value all four of the lines used to position a grid area.

.box1 {
  grid-area: 1 / 1 / 4 / 2;
}

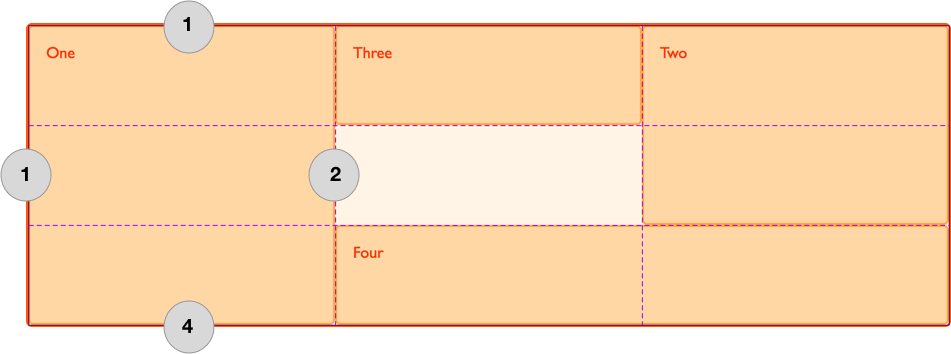

What we are doing here when defining all four lines, is defining the area by specifying the lines that enclose that area.

We can also define an area by giving it a name and then specify the location of that area in the value of the grid-template-areas property. You can choose what you would like to name your area. For example, if I wish to create the layout shown below I can identify four main areas.

• a header
• a footer
• a sidebar
• the main content

With the grid-area property I can assign each of these areas a name. This will not yet create any layout, but we now have named areas to use in a layout.

.header {
  grid-area: hd;
}
.footer {
  grid-area: ft;
}
.content {
  grid-area: main;
}
.sidebar {
  grid-area: sd;
}

Having defined these names I then create my layout. This time, instead of placing my items using line numbers specified on the items themselves, I create the whole layout on the grid container.

.wrapper {
  display: grid;
  grid-template-columns: repeat(9, 1fr);
  grid-auto-rows: minmax(100px, auto);
  grid-template-areas:
    "hd hd hd hd   hd   hd   hd   hd   hd"
    "sd sd sd main main main main main main"
    "ft ft ft ft   ft   ft   ft   ft   ft";
}

* {
  box-sizing: border-box;
}

.wrapper {
  border: 2px solid #f76707;
  border-radius: 5px;
  background-color: #fff4e6;
  max-width: 940px;
  margin: 0 auto;
}

.wrapper > div {
  border: 2px solid #ffa94d;
  border-radius: 5px;
  background-color: #ffd8a8;
  padding: 1em;
  color: #d9480f;
}

<div class="wrapper">
  <div class="header">Header</div>
  <div class="sidebar">Sidebar</div>
  <div class="content">Content</div>
  <div class="footer">Footer</div>
</div>

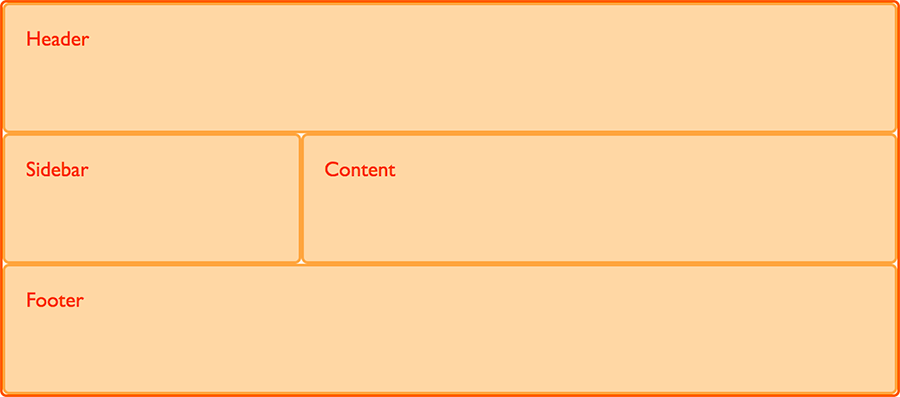

Using this method we do not need to specify anything at all on the individual grid items, everything happens on our grid container. We can see the layout described as the value of the grid-template-areas property.

We have completely filled our grid with areas in this example, leaving no white space. However you can leave grid cells empty with this method of layout. To leave a cell empty use the full stop character, .. If I want to only display the footer directly under the main content I would need to leave the three cells underneath the sidebar empty.

.header {
  grid-area: hd;
}
.footer {
  grid-area: ft;
}
.content {
  grid-area: main;
}
.sidebar {
  grid-area: sd;
}

* {
  box-sizing: border-box;
}

.wrapper {
  border: 2px solid #f76707;
  border-radius: 5px;
  background-color: #fff4e6;
  max-width: 940px;
  margin: 0 auto;
}

.wrapper > div {
  border: 2px solid #ffa94d;
  border-radius: 5px;
  background-color: #ffd8a8;
  padding: 1em;
  color: #d9480f;
}

.wrapper {
  display: grid;
  grid-template-columns: repeat(9, 1fr);
  grid-auto-rows: minmax(100px, auto);
  grid-template-areas:
    "hd hd hd hd   hd   hd   hd   hd   hd"
    "sd sd sd main main main main main main"
    ".  .  .  ft   ft   ft   ft   ft   ft";
}

<div class="wrapper">
  <div class="header">Header</div>
  <div class="sidebar">Sidebar</div>
  <div class="content">Content</div>
  <div class="footer">Footer</div>
</div>

In order to make the layout neater I can use multiple . characters. As long as there is at least one white space between the full stops it will be counted as one cell. For a complex layout there is a benefit to having the rows and columns neatly aligned. It means that you can actually see, right there in the CSS, what this layout looks like.

In our example each of the areas spans multiple grid cells and we achieve this by repeating the name of that grid area multiple times with white space between. You can add extra white space in order to keep your columns neatly lined up in the value of grid-template-areas. You can see that I have done this in order that the hd and ft line up with main.

The area that you create by chaining the area names must be rectangular, at this point there is no way to create an L-shaped area. The specification does note that a future level might provide this functionality. You can however span rows just as easily as columns. For example we could make our sidebar span down to the end of the footer by replacing the . with sd.

.header {
  grid-area: hd;
}
.footer {
  grid-area: ft;
}
.content {
  grid-area: main;
}
.sidebar {
  grid-area: sd;
}

* {
  box-sizing: border-box;
}

.wrapper {
  border: 2px solid #f76707;
  border-radius: 5px;
  background-color: #fff4e6;
  max-width: 940px;
  margin: 0 auto;
}

.wrapper > div {
  border: 2px solid #ffa94d;
  border-radius: 5px;
  background-color: #ffd8a8;
  padding: 1em;
  color: #d9480f;
}

.wrapper {
  display: grid;
  grid-template-columns: repeat(9, 1fr);
  grid-auto-rows: minmax(100px, auto);
  grid-template-areas:
    "hd hd hd hd   hd   hd   hd   hd   hd"
    "sd sd sd main main main main main main"
    "sd sd sd  ft  ft   ft   ft   ft   ft";
}

<div class="wrapper">
  <div class="header">Header</div>
  <div class="sidebar">Sidebar</div>
  <div class="content">Content</div>
  <div class="footer">Footer</div>
</div>

The value of grid-template-areas must show a complete grid, otherwise it is invalid (and the property is ignored). This means that you must have the same number of cells for each row, if empty with a full stop character demonstrating that the cell is to be left empty. You will also create an invalid grid if your areas are not rectangular.

As our layout is now contained in one part of the CSS, this makes it very easy to make changes at different breakpoints. You can do this by redefining the grid, the position of items on the grid, or both at once.

When doing this, define the names for your areas outside of any media queries. That way the content area would always be called main no matter where on the grid it is placed.

For our layout above, we might like to have a very simple layout at narrow widths, defining a single column grid and stacking up our items.

* {
  box-sizing: border-box;
}

.wrapper {
  border: 2px solid #f76707;
  border-radius: 5px;
  background-color: #fff4e6;
  max-width: 940px;
  margin: 0 auto;
}

.wrapper > div {
  border: 2px solid #ffa94d;
  border-radius: 5px;
  background-color: #ffd8a8;
  padding: 1em;
  color: #d9480f;
}

.header {
  grid-area: hd;
}
.footer {
  grid-area: ft;
}
.content {
  grid-area: main;
}
.sidebar {
  grid-area: sd;
}

.wrapper {
  display: grid;
  grid-auto-rows: minmax(100px, auto);
  grid-template-columns: 1fr;
  grid-template-areas:
    "hd"
    "main"
    "sd"
    "ft";
}

We can then redefine that layout inside media queries to go to our two columns layout, and perhaps take it to a three column layout if the available space is even wider. Note that for the wide layout I keep my nine column track grid, I redefine where items are placed using grid-template-areas.

@media (min-width: 500px) {
  .wrapper {
    grid-template-columns: repeat(9, 1fr);
    grid-template-areas:
      "hd hd hd hd   hd   hd   hd   hd   hd"
      "sd sd sd main main main main main main"
      "sd sd sd  ft  ft   ft   ft   ft   ft";
  }
}
@media (min-width: 700px) {
  .wrapper {
    grid-template-areas:
      "hd hd hd   hd   hd   hd   hd   hd hd"
      "sd sd main main main main main ft ft";
  }
}

<div class="wrapper">
  <div class="header">Header</div>
  <div class="sidebar">Sidebar</div>
  <div class="content">Content</div>
  <div class="footer">Footer</div>
</div>

Many of the grid examples you will find online make the assumption that you will use grid for main page layout, however grid can be just as useful for small elements as those larger ones. Using grid-template-areas can be especially nice as it is easy to see in the code what your element looks like.

As a very simple example we can create a "media object". This is a component with space for an image or other media on one side and content on the other. The image might be displayed on the right or left of the box.

Our grid is a two-column track grid, with the column for the image sized at 1fr and the text 3fr. If you wanted a fixed width image area, then you could set the image column as a pixel width, and assign the text area 1fr. A single column track of 1fr would then take up the rest of the space.

We give the image area a grid area name of img and the text area content, then we can lay those out using the grid-template-areas property.

* {
  box-sizing: border-box;
}

.media {
  border: 2px solid #f76707;
  border-radius: 5px;
  background-color: #fff4e6;
  max-width: 400px;
  display: grid;
  grid-template-columns: 1fr 3fr;
  grid-template-areas: "img content";
  margin-bottom: 1em;
}

.media .image {
  grid-area: img;
  background-color: #ffd8a8;
}

.media .text {
  grid-area: content;
  padding: 10px;
}

<div class="media">
  <div class="image"></div>
  <div class="text">
    This is a media object example. We can use grid-template-areas to switch
    around the image and text part of the media object.
  </div>
</div>

We might want to be able to display our box with the image the other way around. To do this, we redefine the grid to put the 1fr track last, and flip the values in grid-template-areas.

* {
  box-sizing: border-box;
}

.media {
  border: 2px solid #f76707;
  border-radius: 5px;
  background-color: #fff4e6;
  max-width: 400px;
  display: grid;
  grid-template-columns: 1fr 3fr;
  grid-template-areas: "img content";
  margin-bottom: 1em;
}

.media.flipped {
  grid-template-columns: 3fr 1fr;
  grid-template-areas: "content img";
}

.media .image {
  grid-area: img;
  background-color: #ffd8a8;
}

.media .text {
  grid-area: content;
  padding: 10px;
}

<div class="media flipped">
  <div class="image"></div>
  <div class="text">
    This is a media object example. We can use grid-template-areas to switch
    around the image and text part of the media object.
  </div>
</div>

Having looked at various ways of placing items on our grids and many of the properties used to define grid, this is a good time to take a look at a couple of shorthands that are available for defining the grid and many things about it all in one line of CSS.

These can quickly become difficult to read for other developers, or even your future self. However they are part of the specification and it is likely you will come across them in examples or in use by other developers, even if you choose not to use them.

Before using any shorthand it is worth remembering that shorthands not only enable the setting of many properties in one go, they also act to reset things to their initial values that you do not, or cannot set in the shorthand. Therefore if you use a shorthand, be aware that it may reset things you have applied elsewhere.

The two shorthands for the grid container are the Explicit grid shorthand grid-template and the grid definition shorthand grid.

The grid-template property sets the following properties:

• grid-template-rows
• grid-template-columns
• grid-template-areas

The property is referred to as the Explicit grid shorthand because it is setting those things that you control when you define an explicit grid, and not those which impact any implicit row or column tracks that might be created.

The following code creates a layout using grid-template that is the same as the layout created earlier in this guide.

.wrapper {
  display: grid;
  grid-template:
    "hd hd hd hd   hd   hd   hd   hd   hd" minmax(100px, auto)
    "sd sd sd main main main main main main" minmax(100px, auto)
    "ft ft ft ft   ft   ft   ft   ft   ft" minmax(100px, auto)
    / 1fr 1fr 1fr 1fr 1fr 1fr 1fr 1fr 1fr;
}

The first value is our grid-template-areas value but we also declare the size of the row at the end of each row. This is what the minmax(100px, auto) is doing.

Then after grid-template-areas we have a forward slash, after that is an explicit track listing of column tracks.

The grid shorthand goes a step further and also sets properties used by the implicit grid. So you will be setting:

• grid-template-rows
• grid-template-columns
• grid-template-areas
• grid-auto-rows
• grid-auto-columns
• grid-auto-flow

You can use this syntax in the exact same way as the grid-template shorthand, just be aware than when doing so you will reset the other values set by the property.

.wrapper {
  display: grid;
  grid:
    "hd hd hd hd   hd   hd   hd   hd   hd" minmax(100px, auto)
    "sd sd sd main main main main main main" minmax(100px, auto)
    "ft ft ft ft   ft   ft   ft   ft   ft" minmax(100px, auto)
    / 1fr 1fr 1fr 1fr 1fr 1fr 1fr 1fr 1fr;
}

We will revisit the other functionality offered by this shorthand later in these guides when we take a look at auto placement and the grid-auto-flow property.

If you have worked through these initial guides you now should be in a position to create grid layouts using line-based placement or named areas. Take some time to build some common layout patterns using grid, while there are lots of new terms to learn, the syntax is relatively straightforward. As you develop examples, you are likely to come up with some questions and use cases for things we haven't covered yet. In the rest of these guides we will be looking at some more of the detail included in the specification – in order that you can begin to create advanced layouts with it.
